Description

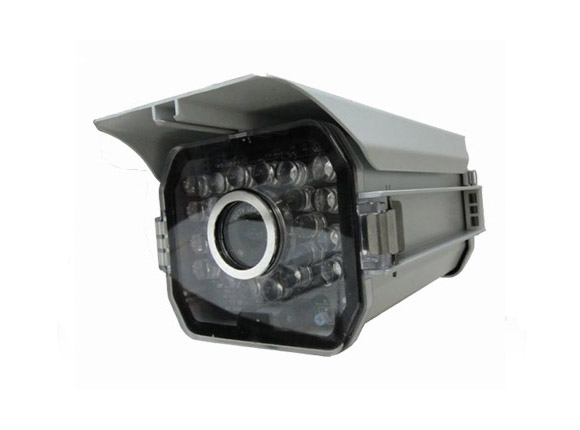

AHD LPR Camera with 35 meters IR

The LPR Infra Red License plate camera is suitable for Day time conditions & Dark Night areas seeing up to 35 meters. The technology of this camera surpasses many such as Mechanical IR Filter Built in for Brightness up, built in anti smear which can be caused by headlights of vehicles, Reliable recognition ratio for front and rear plate, Day & night functions for personal LPR settings.

Extra features come with the camera Such as De-moire, Digital Wide Dynamic Range, Motion Detection 2D Noise Reduction, High Light Compensation, Head Light Eclipse enhance Number Plate readable technology, advanced shutter speed technology. The camera is the next step up in License Plate technology.

This camera comes with a 5-50mm lens that can be set for different positions and angles and can be accessed via a small trap door under the camera. The camera can be used outside as it comes with weatherproof housing already built. This model License Plate Recognition Camera can see license plates up to 110 kilometres Per Hour and also comes with a 24 month Warranty. This camera has a 2 Year warranty.

Specifications

Video compression format	H.264
Resolution：	Main stream(Max.) 5 megapixel —25 fps 1920 x 1080 —30fps 1280 x 720 —30fps	Sub stream 704 x 480P —30fps 640 x 360P —30fps 320 x 180P —30fps	Phone stream Choose by video quality ; Auto adjust
Network protocol	HTTP、TCP/IP、UDP、SMTP、DDNS、DNS、SNTP、 DHCP、FTP、RTP、RTSP、UPNP、ONVIF
Stream	Dual simultaneous stream
Operation system	Embedded Linux
LED indictor	System & networking
Audio	Two-way audio：G.711 / ADPCM / G.726
Motion detection	Storage saving
Network speed	10 / 100Mbps
ONVIF	Adjust Port value
Browser	IE 7.0 above / google*/ firefox *
Stream	Multiple simultaneous streams
Time correction	Sync by network server、Manual
Remote surveillance (P2P)	APP(Iphone , Android) QR Code

Camera features：
Sensor	1 / 2.5 inch ，5 Megapixel SONY CMOS
Effective pixel	5 megapixel
Lens	3M CS固定 4,6 mm (optional)	2.8 ~12mm varifocal
Filter	(Mechanical IR CUT filter)
Resolution	5 megapixel
Illumination	Color 1 Lux，B/W 0.1 Lux
S/N ratio	50dB (Auto gain control/ off)
Power supply	DC 12V	DC 12V & AC 24V Dual Power
Power consumption	4W (IR/ on: 10W)
Ambient humidity	0 ～ 50℃ /30 ～ 90 ﹪RH
Dimension	95mm(H) x 100mm(W)× 200mm(L)	95mm(H) x 100mm(W)× 250mm(L)
Weight	Approx. 1200g (Bracket not ncluded)	Approx. 1300g (Bracket not included)
IR range	5pcs super bright 850nm LED；Reach to 40m (45° LEDs)
Video adjust	Tune、Brightness、Contrast、Saturation、Horizontal & Vertical flip、 Stream switch
Day/ Night mode	Auto mechanical IR cut，B/W mode at night
Web adjust	Main stream, Sub stream, Resolution、Stream rate, frame、Audio、WDR、 Time, Name, Network, Motion detection、Photograph、Record、Replay
Electronic shutter	Auto:1/50 to 1/15,000 sec.
Privacy mask	4 blocks，Adjust area
Motion detection	Trigger record、Send by e-mail & Upload via FTP，adjustable alarm timing
Storage device	ONVIF NVR support
Video transmission	System：PAL、NTSC，50Hz、60Hz Quality：Best、Upper、Good、Normal、Low Max. frame：1,2,3,4,5,6,7,8,9,10………….30f/s Stream control：Fixed stream、Changeable stream Rate：128K、256K、512K、1M、2M、3M、4M ——8M
Waterproof	IP68
Cable	Power、RJ45、Audio In/Out、Video Out
Software	Reset；Remote upgrade； Attached Disc：IP search，32CH record software
