Description

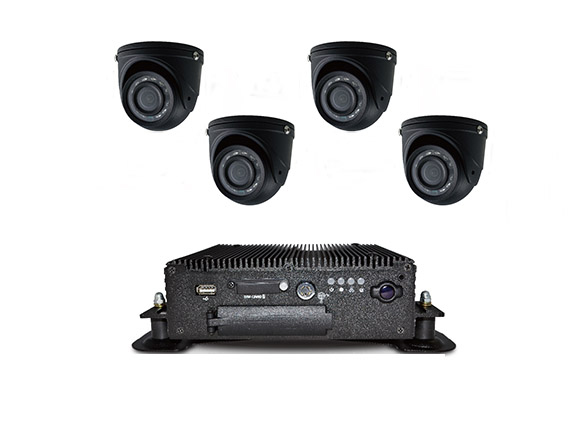

1080p 4 Channel Vehicle Kit

. AHD 1080p 4 channel vehicle kit high video quality transmission, up to 1920×1080 pixels.
. 12 pcs IR LED ; 3~5M IR range.
. 2.8 / 3.6 mm lens.
. IP Rating: IP66.
. Provide Video output for playing-back mode in mainframe.
. Recording format: 1080P.
. User friendly player software, easy to operation.
. Overall quick search event log.
. The full recording time and date can be showing in the monitor directly.
. Auto recording after power supplied.
. Removable HDD Track compatible with 2.5″ HDD or SSD.
. Firmware can be upgraded via USB port.
. Support recording audio, video, G-sensor and GPS data at the same time.
. Optional 3G module, for real time monitoring the driving statue, or talk to driver.

Specifications

	Camera
Pick Up Element		1/2.9″ Sony Exmor CMOS Sensor
Video System		NTSC / PAL
Image Signal Process		Digital Signal Processor
Lens		2.8mm / 3.6mm
Number Of Pixel		1920 (Horizontal) x 1080(Vertical)
Horizontal Resolution		1080P@30fps
Power Supply		DC 12 ± 1V
Power Consumption		120mA (IR Off)；300mA (IR On)
Electronic Shutter		NTSC: 1/30~1/50,000 Sec. PAL: 1/25~1/50,000 Sec
White Balance		Auto
Gain Control		Auto
S/N Ratio		≧50dB
Day Night Auto Switch		Support
LEDs		12 PCS
IR Range		3~5M
IR Wavelength		850nm
Minimum Illumination		0.01 LUX / F1.2 (IR ON)
Output		AHD or CVBS (Default setting: AHD Mode)
Language		English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish /Polish / Russian / Portuguese / Dutch / Turkish
IP Rating		IP66
Operating Temperature		-20℃~50℃
Dimensions (H×W×D)		Ø:60.5mm x 58mm
Weight		About 300g

VIDEO FORMAT	NTSC / PAL
OPERATING SYSTEM	EMBEDDED LINUX
VIDEO INPUT	4CH INPUT	8CH INPUT
MAX. CAM POWER SUPPLIER	12V/250MA/EACH
VIDEO OUTPUT	1CH OUTPUT
AUDIO INPUT	1CH INPUT
AUDIO OUTPUT	1CH OUTPUT
ALARM INPUT	4 ALARM INPUT
CONTROL MODE	GUI
MULTI-LANGUAGE	ENGLISH / CHINESE / OTHERS
DISPLAY RESOLUTION	NTSC: 120 FRAMES/S (4X30 FRAMES/S)	NTSC: 240 FRAMES/S (8X30 FRAMES/S)
	PAL: 100 FRAMES/S (4X25 FRAMES/S)	PAL: 200 FRAMES/S (8X25 FRAMES/S)
RECORDING RESOLUTION	NTSC: MAX. 30FPS@CIF / 15FPS@D1
	PAL: MAX. 25FPS@CIF / 15FPS@D1
RECORDING FRAME	NTSC: MAX. 30FPS@CIF / 15FPS@D1
	PAL: MAX. 25FPS@CIF / 15FPS@D1
DISPLAY MODE	FULL SCREEN, 4 SPLIT	FULL SCREEN, 4 / 9 SPLIT
DISPLAY RESOLUTION	NTSC: 720 X 480
	PAL: 720 X 576
RECORDING RESOLUTION	NTSC: 360 X 240@CIF / 720 X 480@D1
	PAL : 360 X 288@CIF / 720 X 576@D1
COMPRESSION ALGORITHM	H.264
HDD	2.5”SATA HDD CADDY MAX. 1TB
BACKUP DEVICE	USB STORAGE OR THROUGH CARBOX PLAYER
PLAYBACK MODE	SEARCH FUNCTION: TIME / EVENT
	FULL SCREEN
LED INDICATOR	4 LED (LAN、REC、GPS、POWER)
SIGNAL LOSS DETECTOR	YES
BUZZER ALARM OUTPUT	YES
RS485	YES
GPS	OPTIONAL
G-SENSOR	YES
3G MODULE	OPTIONAL
WIFI	OPTIONAL
IR REMOTE CONTROL	YES
WATCHDOG	YES
EXTENDED RECORD MODE	YES
POWER SUPPLY	DC 8V~36V
DIMENSION	250MM X 174.8MM X 69.5MM
OPERATION TEMPERATURE	-20℃ ~ +65℃
WEIGHT	1.85KG(WITH BRACKET AND HDD)
